The Shp2Xyz tool is used to extract the geographic position of the various shape file data into xyz files. The resulting xyz data files can then be imported into the Mesh Generator as scatter data or boundary arcs.
Figure 14.2 shows how the imported data may look in Mesh Generator.

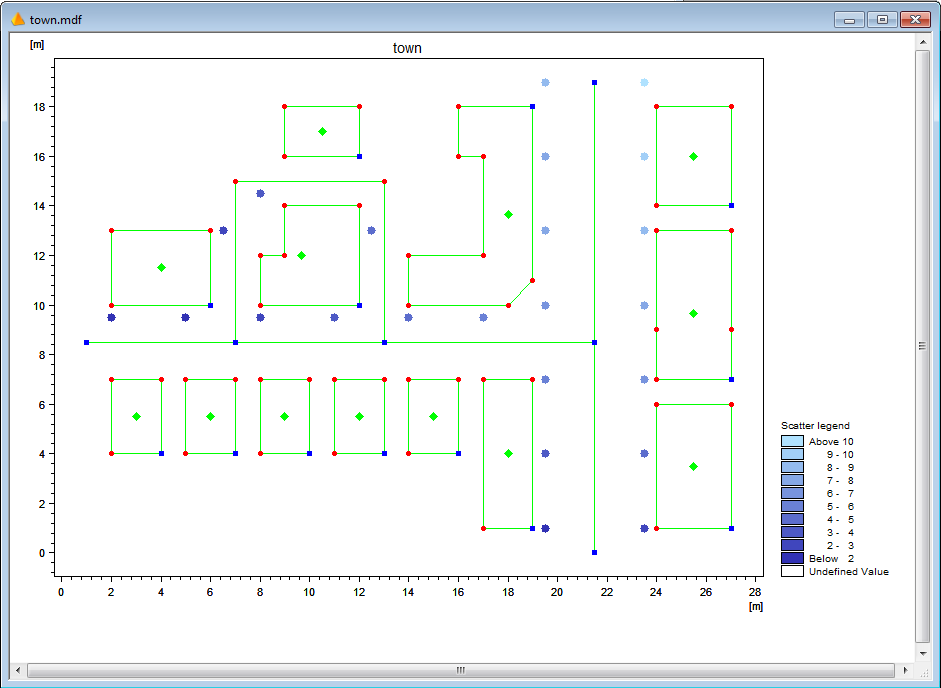

Figure 14.2 Resulting display of data in Mesh Generator
Scatter data displays internal bathymetry value of lamp posts
