Flocculation

Flocculation is when the concentration of sediment is high enough for the sediment flocs to influence each other’s settling velocity. This happens because collisions between flocs will increase floc size leading to higher set­tling velocities.

Standard flocculation concentrations occur when hindered settling is neglected. The calculation is shown in Figure 7.2.

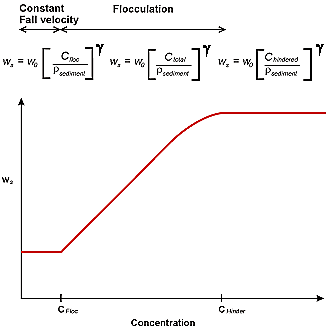

Figure 7.2           Applied concentration profile when flocculation selected

rsediment

Density of grain material

cfloc

Concentration at which flocculation begins

ctotal

Total concentration of sediment (sum of concentrations of all fractions)

chindered

Concentration at which hindered settling begins

Ws

Settling velocity

W0

Settling velocity coefficient

g

Power constant
