Specifications

Select the dune erosion type as ‘Parameterized dune erosion’ to include the effect of dune erosion. Next you have to specify the initial location of the dune (see Data) and dune erosion parameters.

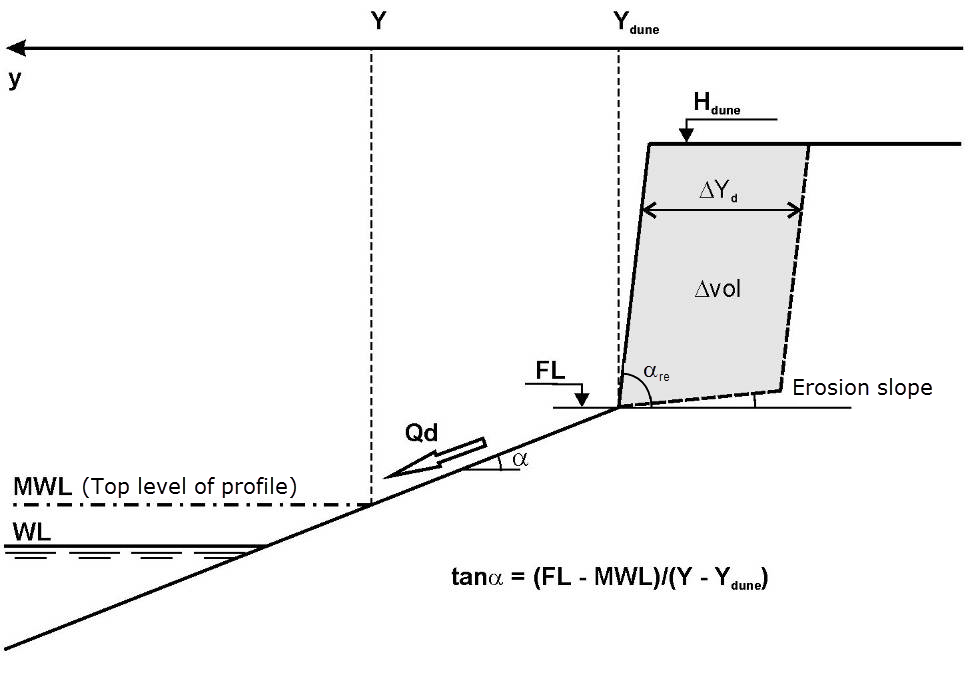

Figure 11.10    Definition sketch for the dune erosion model

The dune erosion parameters are described in Table 11.1 below.

Table 11.1          Dune erosion parameters

Parameter

Description

Erosion slope

z-level change due to dune foot level retreat

Dune height

dune crest level

Max. slope

maximum slope of shoreface before failure

Reference depth

mean water depth by which data for the dune erosion calculations are derived

Gamma

calibration factor for the estimate of wave run-up

Cs

calibration factor, usually in the order 0.001 to 0.003

Angle of repose

angle of the dune front

Min. active area

minimum area for active dune erosion (DVol/m)

Max. no. of iterations

calculation parameter

Tolerance

calculation parameter

Relaxation factor

calculation parameter
