The geometry of a structure may be defined by a level-width relation, where the Level/Width table defines the shape of the active flow area as a set of corresponding levels and flow widths. Values in the levels column must be continuous, increasing values.

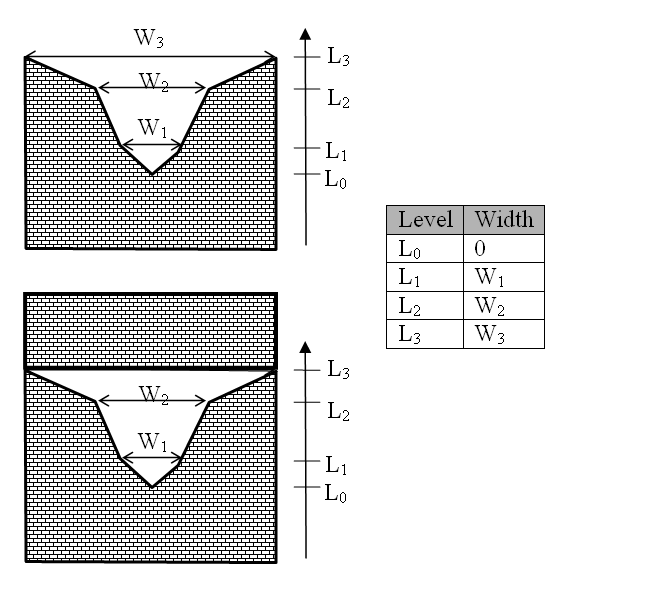

Figure 5.7 Definition sketch of level-width relationship
Upper: broad crested weir
Lower: Irregular culvert
