Evaluating your river links

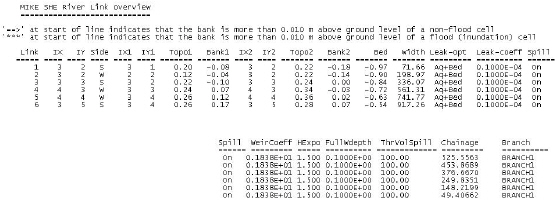

The river links are evaluated during the pre-processing. In the pre-processor log file (yourprojectnamePP_print.log), there is a table that contains all of the river link details:

In this table, the locations where the river links are higher than the topography are marked in the outside left column.

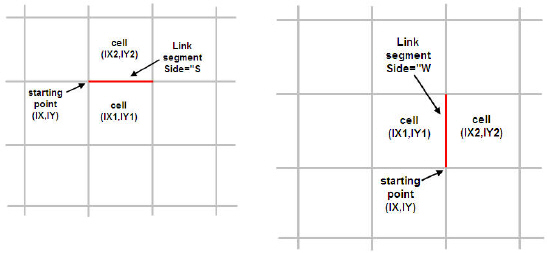

The reference system used in the table is illustrated below:

The explanation of the columns is:

Link: River Link ID number. ID starts at 1 and increases by 1.

IX,IY: coordinate of one end of the link segment. They are referred to the pre­processed grid such that (IX,IY)=(1,1) at the left-bottom corner of the model grid. The link segment can be drawn starting from (IX,IY) coordinate, and then following east direction if Side="S" or following the north direction if Side="W".

Side:  relative position of the (IX1,IY1) cell with respect to the link segment. "S" stands for south and "W" for west.

IX1,IY1: coordinate of the cell on the south side of the link if Side="S", or the cell on the west side of the link if Side= "W". The left-bottom corner cell of the model grid has coordinates (IX1,IY1)= (1,1).

Topo1: Pre-processed Topo elevation (in meters) of the cell (IX1,IY1).

Bank1: Interpolated cross section bank elevation (in meters) at marker 1 or 3 at the link chainage (last column). The marker (1 or 3) corresponding to Bank1 depends on the position of the cell (IX1,IY1) with respect to the direc­tion of increasing chainage. Marker 1 is the left marker in the increasing chainage direction.

IX2,IY2: Coordinate of the cell on the opposite side to (IX1,IY1). In other words, it is the cell on the north side of the link if Side="S", or the cell on the east side of the link if Side= "W". The left-bottom corner cell of the model grid has coordinates (IX2,IY2)= (1,1).

Topo2: Pre-processed Topo elevation (in meters) of the cell (IX2,IY2).

Bank2: Interpolated cross section bank elevation (in meters) at marker 1 or 3 at the link chainage (last column). The marker (1 or 3) corresponding to Bank2 depends on the position of the cell (IX2,IY2) with respect to the direc­tion of increasing chainage. Marker 1 is the left marker in the increasing chainage direction.

Bed: Interpolated cross section elevation (in meters) at marker 2 at the link chainage (last column). In other words, it is the river bed bottom elevation interpolated at that chainage.

Width: Interpolated cross section width (in meters) at the link chainage (last column). The cross section width is the distance between markers 1 and 3 in the cross section profile.

Leak-opt: The Conductance option used in the coupling reach in which this river link is contained. The value is from in the MIKE SHE links table of the MIKE Hydro River Coupling Reaches dialogue. The three possible options are "Aq+Bed", "Aq only", and "Bed only". See Groundwater exchange with MIKE Hydro River (V1 p. 531) and Figure 27.4.

Leak-coeff: The Leakage Coef. value used in the coupling reach in which this river link is contained found in the MIKE SHE links table of "Coupling Reaches". See Groundwater exchange with MIKE Hydro River (V1 p. 531) and Figure 27.4.

Spill: Indicates whether the Allow overbank spilling option is checked for the coupling reach in which the river link is contained. The two possible values are "On" and "Off". See Figure 27.4.

WeirCoeff: The Weir coefficient value used in the coupling reach in which the river link is contained. See Figure 27.4.

HExpo: The Head exponent value used in the coupling reach in which the river link is contained. See Figure 27.4.

FullWdepth: The Minimum upstream height above bank for full weir width value used in the coupling reach in which the river link is contained. See Figure 27.4.

ThrVolSpill: Threshold volume value in cubic meters, which is the product between the Minimum flow are for overbank spilling value (for the coupling reach in which this river link is contained. See Figure 27.4) and the MIKE SHE cell size.

Chainage: Chainage of the MIKE Hydro River network that corresponds to the center of the link segment. They are sorted from highest to lowest chain­age values for the same branch.

Branch: Name of the MIKE Hydro River Branch. Branches are sorted alpha­betically.
